The smallest telehandlers in the Manitou and Gehl lineups are going to dealerships afterwards this yr.
The new Manitou ULM 412 H and ULM 415 H telehandlers have lift heights of 14 feet 1 inch and capacities of 2,756 and 3,307 lbs, respectively.
The ULM stands for Extremely Light Manitou.

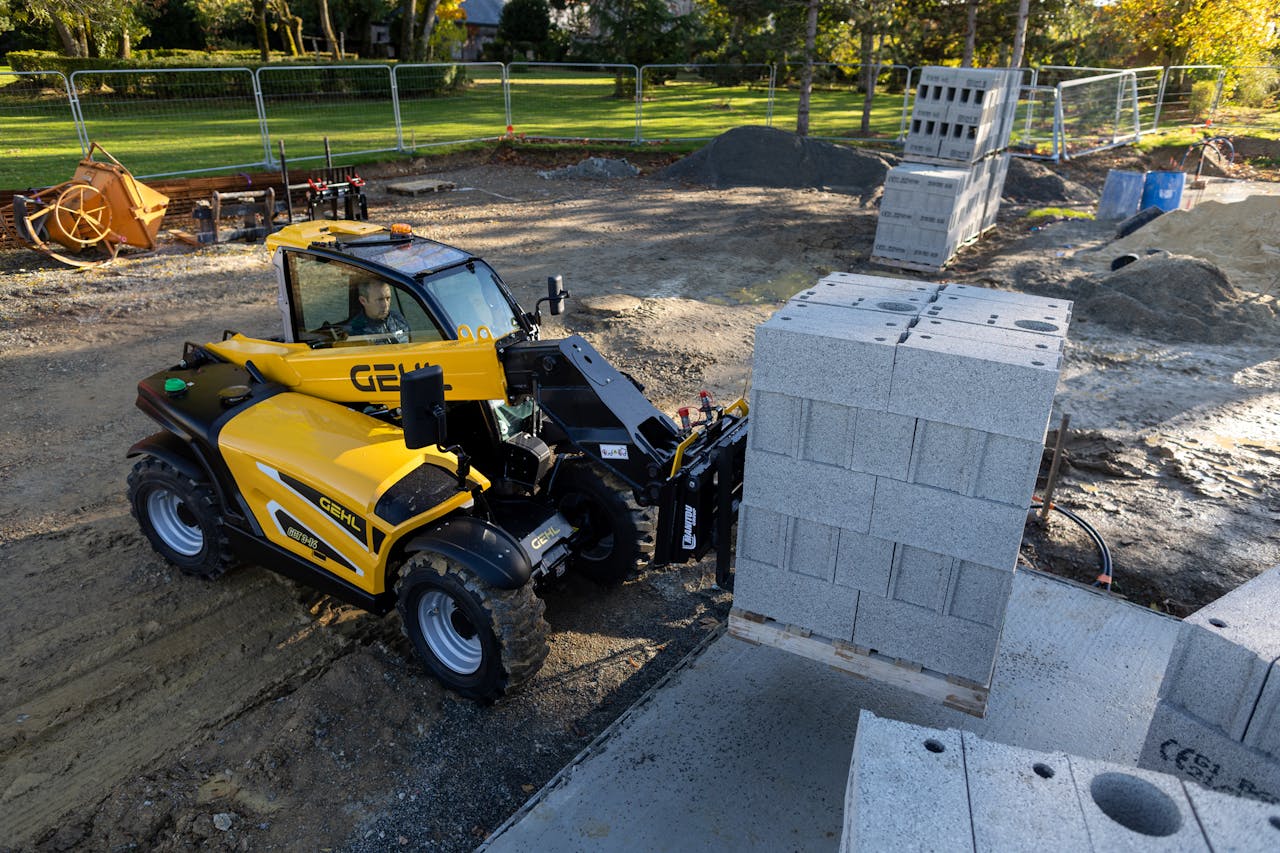

The company’s Gehl styles – GCT 3-14 and GCT 3-14+ – attribute the exact specs but will be painted in that brand’s trademark yellow. The GCT stands for Gehl Compact Telehandler.
ManitouThe telehandlers ended up built at Manitou’s Laillé internet site in France with a focus on building “super compact” telehandlers, the organization states.
At 3 tons, they are gentle adequate to be hauled by a small trailer. They can work in restricted situations, with a width of just beneath 5 feet and a peak of 6 toes 4 inches. They are 11 ft 5 inches lengthy.
The new telehandlers characterize the lightest produced by Manitou. The Manitou MT 420 and Gehl RS4-14 were being the company’s smallest designs at 9,237 lbs. In comparison, the ULM 412 H and GCT 3-14 weigh 6,063 kilos every.
The telehandlers are built for tough terrain with 4-wheel drive, an oscillating rear axle and an 11-inch ground clearance. A selection of tires are also offered.
Max get to is 8 ft 7 inches. The telehandlers have a bucket breakout pressure of 4,226 pound-feet.
They operate on 35-horsepower Tier 4 Closing Yanmar engines, with hydrostatic transmission. Vacation speed is 16 mph. They have a few steering modes: two-wheel steering for journey 4-wheel steering for limited spaces and crab method for lateral maneuvers.
ManitouManitou states the taxi provides operators with a 360-degree view. They also get a check out over as the roof has a shock-resistant polycarbonate window that the company says meets FOPS (slipping item protective construction) requirements.
Facet sights are also crystal clear with hydraulic hoses positioned inside the increase and the motor compartment put lower to the right facet of the operator.
Other taxi characteristics: pop-up operator assistance on the dashboard show display screen, joystick positioned on a floating armrest, two vents on the windshield and automated parking brake. There is also no additional phase for coming into the cab.
ManitouFor saving fuel and maintenance costs, Manitou gives a Stop & Get started solution that quickly cuts off the machine when stopped to lessen idling. The organization has also diminished the hydraulic tank sizing by 25% to 10 gallons by re-engineering the hydraulic technique. It removed the hydraulic compensating cylinder and replaced it with an electronic compensator and extra an anti-aeration filter. That not only minimized hydraulic oil prerequisites for the device but diminished its width.
Optimum hydraulic stream is 13 gallons per minute at 3,408 kilos per sq. inch. That allows the machine to tackle a wide range of attachments, which include buckets, forks, pot clamp, pruning clipper and snow blade. Manitou states the telehandler is equipped with a move-sharing distributor that permits a number of hydraulic actions at the very same time.
Manitou built the motor compartment opening wide for a lot easier obtain. A hatch in front of the engine lets straw or dust near the radiators to be taken out, and access to the fuel and hydraulic oil tanks are at eye stage, the organization states.
ManitouAll of the types occur conventional with access to MyManitou or MyGehl applications for controlling routine maintenance by smartphone.
The 1st deliveries of the telehandlers for North The us are scheduled for the third quarter of this 12 months. The firm options to present the following solutions on the 1st 180 devices produced: vehicle-idle Stop & Begin, pneumatic cloth seat, a four-year warranty and an added attachment to the forks carriage. That offer expires May well 31.
